ASI JD Macdonald BEHIND THE MIRROR SYSTEM – STAINLESS STEEL CABINET WITH FRAMELESS MIRROR, LIQUID SOAP DISPENSER AND PAPER TOWEL DISPENSER, VELARE™ COLLECTION (10-0661-T)

Original price $4,948.90 - Original price $4,948.90
Original price
$4,948.90
$4,948.90 - $4,948.90
Current price $4,948.90

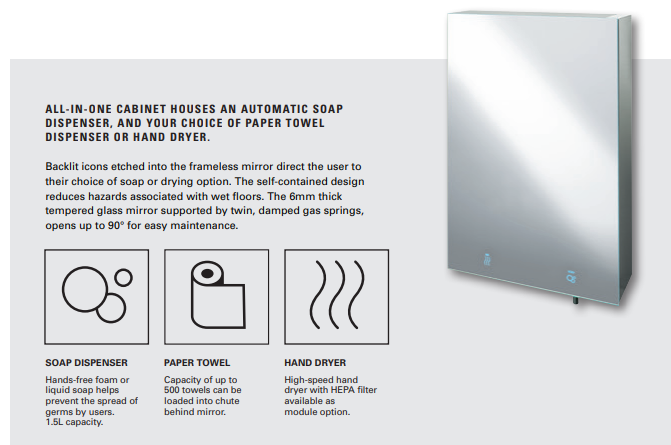

Behind the Mirror (BTM) is designed with elegance and safety in mind, concealing consumables in a cabinet made from type 304 stainless steel. The cabinet features a mirrored door with back-lit icons that indicate functions provided from the bottom panel of each module. Mirror is made from 6 mm thick frameless tempered glass with pencil edges and eased corners with SS sheet intermediate stiffener and SS back plate with integral welded support mounts, hinge and lock keeper.

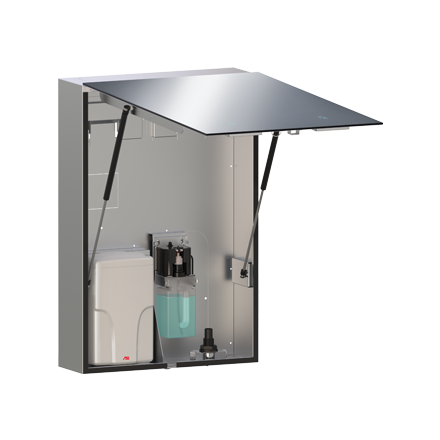

The mirrored door is attached to the cabinet using a full width 4.8mm diameter concealed piano hinge and is secured shut using a tumbler lock and key. Support for mirror door is provided by twin damped gas springs to assist opening from 15° to 90° with soft-stop cushion at full open and when lowering to full closed position for locking.

This wall mounted stainless steel cabinet conceals a hands-free automatic liquid soap dispenser with a 1.5 L capacity and paper towel dispenser with a 500 towel capacity.

Mirror back-lights operate on 100 – 240 VAC provided to duplex outlet (by others) concealed behind the cabinet into which a standard appliance power cord and AC adaptors are plugged into at installation.

Overall Dimensions: 600 x 900 x 192 mm

SPECIFICATION SHEET
